Compatibility of VELUX® wall remote control

E-VLXESP32 is compatible only with the following VELUX® wall remote models:

  • KLI311
  • KLI312
  • KLI313

Removing the back cover

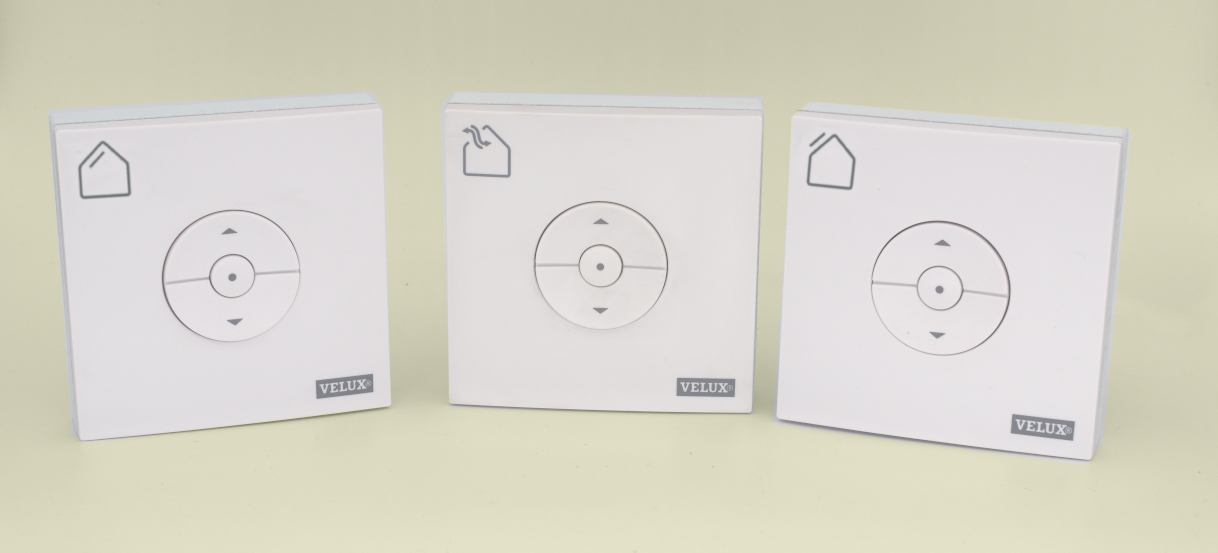

Fig. 1 – KLI311, KLI312, KLI313

Important

Connecting an incompatible VELUX® remote control may permanently damage both the remote and the E-VLXESP32.

Verify PCB compatibility

Ensure that the PCB on the back of your VELUX® remote matches the image below. All gold-plated pads must be in the same position.

Danger

If the PCB layout does not match, do not connect the remote to E-VLXESP32.

Compatible PCB layout

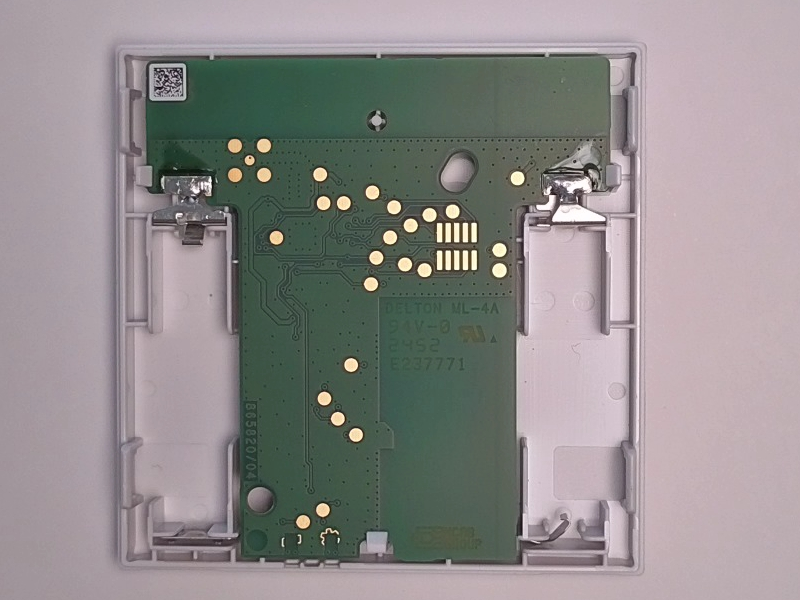

Fig. 2 – Compatible PCB layout

Disclaimer

Important

The E-VLXESP32 is an independent third-party product developed and manufactured by PG LAB Electronics S.R.L.S. It is not affiliated with, endorsed by, or sponsored by VELUX A/S or any of its subsidiaries or affiliates.

VELUX® is a registered trademark of its respective owner. All references to VELUX® products, including compatible remote control models, are made solely for the purpose of indicating compatibility.
